 Drum Valves
Product Overview
The Drum Valve System from Micro Matic has become the standard for closed liquid transfer from drums and containers.
The system offers an environmentally safe method of dispensing liquid from returnable packaging.
Suitable for plastic or mild steel drums and stainless steel containers, the drum valve system transforms one-trip drums into returnable/refillable closed liquid transfer systems.
The Drum Valve System is a closed system. The robust stainless steel extractor valve remains in the container during the filling process and after dispensing. Not suitable for food or beverage valve system requirements.
Product benefits
A Closed Liquid Transfer Valve System for a Cleaner, Safer Tomorrow
Drum Valve System Benefits
- Closed filling and dry break emptying with less than 1ml residue
- Reduced operator exposure and improves worker safety
- Offers closed system filling and evacuation
- Improved product integrity and quality
- Easy to handle and operate, simplifies drum emptying
- Improved general cleanliness standards
- Extractor valve UN Group I/II/III Certified
- Supports returnable / refillable container systems
- Range of seal materials for wide chemical compatibility
- Fully replaceable seal system
- Minimizes waste
Product and Industry Applications
|
Agro Chemicals
- Herbicides
- Insecticides
- Fungicides
- Seed Treatment |
|
|
|
General Chemicals
- Solvents
- Petrochemicals |
| |
|
|
Specialty Chemicals
- Peracetic Acid
- Water Treatment
- Dry Cleaning Products |
The Drum Valve System Configuration

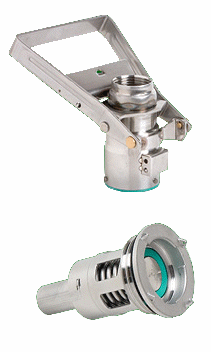

The Drum Valve System
Extractor Valve can remain in place after emptying, transforming a single trip drum into a returnable / refillable container.
|
- Standardizes liquid containers and drums for returnable packaging
- Transforms single trip drums into returnable packages
- Range of seal materials for wide chemical compatibility
- Flexible dip tubes
- Tamper evident seal and closure
- Easy to install into mild steel, stainless steel and plastic containers
|
| |
|
| Closed System Filling Offers Emission Free Vapor Recovery |
|
- Eliminates emissions into the environment
- Decreases worker exposure
- Reduces processing time and operation cost
|
| |
|
Closed System Dispensing
Connection between coupler and extractor valve is made easy through its cam-lock design. |
|
- Diaphragm seal in coupler allows self-venting during dispensing and prevents spillage
- Internal check valve in the coupler probe prevents unauthorized filling and cross contamination
- Reduced operator exposure and improves worker safety
- Minimal residue remains in the container
- Flow rate of 24 gpm / 90 lpm.
|
| |
|
Flushing Socket
|
|
Closed System flushing of coupler, hose, pump and meter.
Eliminates rinsate disposal into the environment.
Reduces worker exposure.
Improves general cleanliness standards. |
|
